Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

Model NO. : MC-Z-180

Raw Material : Coke/Coconut Shell/Sawdust

Applicable Industry : Manufacturing Plant, Food & Beverage Factory, Farm

Type : Briquette Machines

Keyword : Charcoal Briquette Machine

Diameter of Briquettes : 50~80mm Customized

Briquette Shape : E Round, Hexagon, Cinquefoil or Others

Moisture of Raw Material : 8%-12%

Finished Products : Charcoal Briquettes

Core Components : Bearing, Motor, Pressure Vessel

Transport Package : Standard Export Wooden Case Packing or Container

Specification : 2320*1600*1150mm

Trademark : MC

Origin : Zhenghzou

HS Code : 8479820090

Supply Ability : 1000-1500kg/H

After-sales Service : 24 Hours Online

Warranty : One Year

Structure : Vertical

Fuel Size : Briquetting

Name : Hot Sale Coconut Shell Sawdust Coal Powder Charcoa

Powder : 22 Kw

Customization : Available | Customized Request

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Packaging Details : Wooden Box

Delivery Time : Peak Season Lead Time: 6-12 months Off Season Lead Time: 3-6 months

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

Hot Sale Coconut Shell Sawdust Coal Powder Charcoal Briquette Extruder Machine Price
Charcoal briquette machine uses sawdust, crop straw, rice husks, bamboo cuts, etc. as raw materials. After being crushed by the wood chip crusher, a high-temperature and high-pressure zone is formed under the action of the spiral propeller and the heating ring to process the loose raw materials into hollow rods.This product has high density, small size and good flammability, and can replace firewood and coal.
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine charcoal briquette machine features:
1.Reasonable design, reliable manufacturing quality, simple structure, easy operation, small size, small footprint, labor saving, and power saving.
2.The designed fully automatic control electric heating device can randomly adjust the dryness and humidity of the material to ensure stable discharging and molding and improve work efficiency.
3.The main parts of the product are made of wear-resistant materials and specially treated, so they can be continuously pressed and produced and are durable.
4.It is suitable for the pressing and molding of various biomass raw materials, with low energy consumption, high production efficiency, and increased bearings, which increases the durability and stability of the machine.
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

Raw Materials&Final Products
The raw material can be crop straw ,bagasse,coal powder, charcoal fines and so on.If you're not certain weather the raw material is available, you can consult with us!

Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

The biofuel briquette has a diameter of 45-80mm and is constructed from a hollow, quadrangular or hexagonal cylinder or hollow hexagonal cylinder with a 15-20mm hole through the body.The available shapes are square, hexagonal, pentagonal, pentagonal with an edge, and hexagonal with an edge.The diameter of the available options is as follows: The dimensions of the briquette may be selected from the following options: 50mm, 60mm, 70mm, and so on.
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

Production Line
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine Step 1:Crush the materials into small pieces(3-5mm)
Step 2:Drying the moisture content in the material to blow 8%-12%
Step 3:Shape the raw material with diferent shapse
Step 4:Carbonizing briquette log into charcoal without smoke

Model	Capacity	Powder	Diameter of Spiral(mm)	Feeding Size(mm)	weight(kg)	size(mm)
MC-Z-140	1000-1500kg/h	11kw	140mm	<5mm	650	203012601080
MC-Z-160	1500-2000kg/h	15kw	160mm	<5mm	720	220012601080
MC-Z-180	2000-3000kg/h	22kw	180mm	<5mm	1200	232016001150

Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

1: Will you test the machine before delivery?
Yes, we will test every machine and production line before delivery and send you the working video. You can also inspect the goods on site before delivery.
2: Are you trading company or manufacturer?
We are manufacturer, we can offer you lower prices than those trading companies. Besides, customers from can get a discount.
3:Why choose us?
We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine

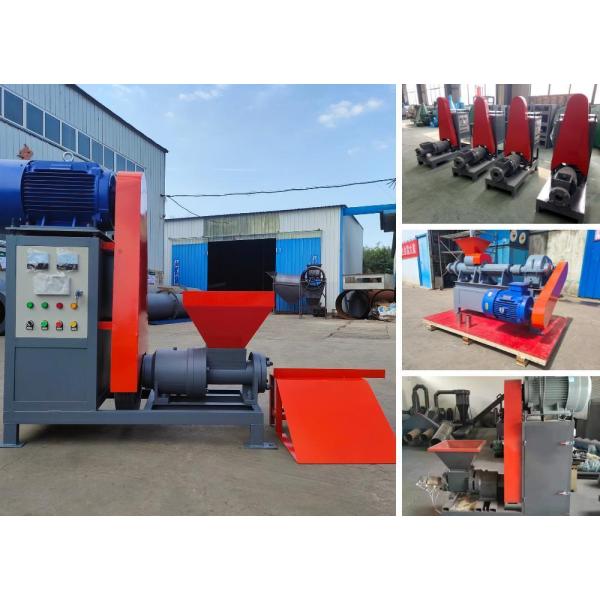

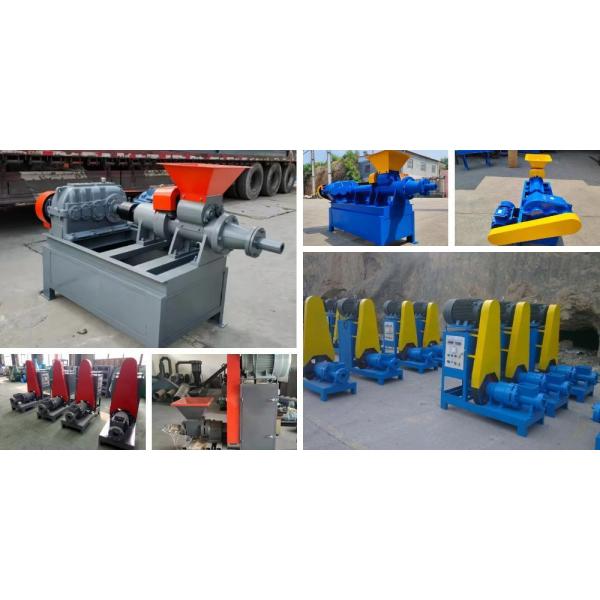

Cinquefoil Briquette Shape Coconut Shell Sawdust Coal Powder Charcoal Extruder Machine Images
